StrataEMR supports integrated credit card processing through Authorize.net, an industry-leading payment gateway. The integration connects StrataEMR directly to your existing merchant account, allowing staff to store cards on file and process patient payments without leaving the EMR — and without entering the transaction separately in a merchant portal. Credit card processing is an optional add-on. Contact your StrataPT account manager to get started.
Access: Processing credit card payments is available to all staff. Configuring the Authorize.net integration requires Practice Admin permissions or above.

How the Integration Works

Authorize.net acts as the secure connection between StrataEMR and your merchant account. It does not replace your existing merchant account or change your transaction fees — all existing service terms with your merchant provider remain in place. Authorize.net simply provides the API layer that allows StrataEMR to communicate with your merchant account seamlessly. Most StrataEMR users utilize the All-In-One plan from Authorize.net. This sets up a full merchant account rather than a gateway-only option. Once connected, you can:
  • Store a patient’s credit card on file directly from the StrataEMR payment page — no need to re-enter card details at each visit
  • Process payments with one click — the charge is applied and communicated to the StrataPT billing team in a single action
  • Enable patient portal payments — patients can log in to the portal and pay their outstanding balance using a saved or new card
If Authorize.net is not connected, patient payments must be entered manually in Financial > Payments within the patient’s case.

Setting Up the Integration

To activate Authorize.net, you’ll need credentials from your merchant service provider:
  • Authorize.net API Login ID (not user name)
  • Transaction Key
Once you have these, navigate to: Menu Bar > Settings > Credit Card Processing. Enter the credentials and click Save.
Getting your credentials: Contact your merchant service provider (e.g., your bank’s merchant services department) to obtain your Authorize.net API credentials. Your StrataPT account manager can also help coordinate this during onboarding.

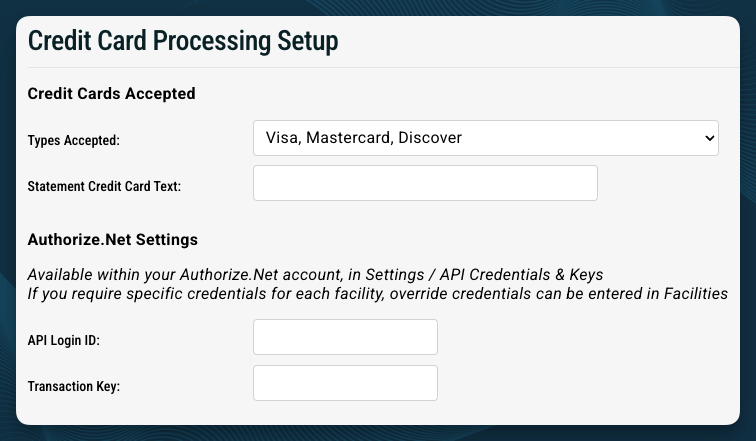

Credit Card Processing tab showing API Login ID and Transaction Key fields
The Credit Card Processing tab with both credential fields

Processing a Payment

Once the integration is active, patient credit card payments can be collected from the Authorize.net Integrated Payment Processing section on the patient’s chart.
  1. Navigate to Financial > Payments.
  2. Locate the Authorize.net Integrated Payment Processing box and select Add Credit Card.
  3. In the pop-up window, select Pay and retain card for future use.
    1. Credit card details are not stored in Strata; they are securely vaulted directly inside Authorize.net.
    2. Best Practice: Add the last 4 digits of the card to the notes section in Strata. Because card details are vaulted externally, Strata will not display which card is on file for future reference.
Accessing the section: The Authorize.net Integrated Payment Processing section is below the Manual Payment Processing section on the Payments page. Payments will be logged in one section or the other, not in both.
Payment applies to the oldest outstanding balance by default. If you need to apply a payment to a specific date of service, select that date before processing. Receipts can be generated after payment via Reports > Schedule and Receipt.

Patient Portal Payments

With Authorize.net active, patients can pay their balance through the StrataEMR patient portal. The portal link is sent from the Patient Engagement page via text or email. Patients can view their outstanding balance and pay with a saved card or enter new card details. Information entered via the portal pays the current balance but does not store the card on file for future use.

Storing Cards on File

A patient’s credit card can be saved to their account for repeat payments when entered from the Payments page of their case. Card information is stored securely through Authorize.net, StrataEMR does not store raw card data. Once a card is on file, staff can charge it without re-entering the card number.

Fees

Strata does not automatically pass Authorize.net fees onto the patient. State laws also regulate whether credit card surcharging is legally permitted.
